Created with Pixso. LN4715D24-001 350KV

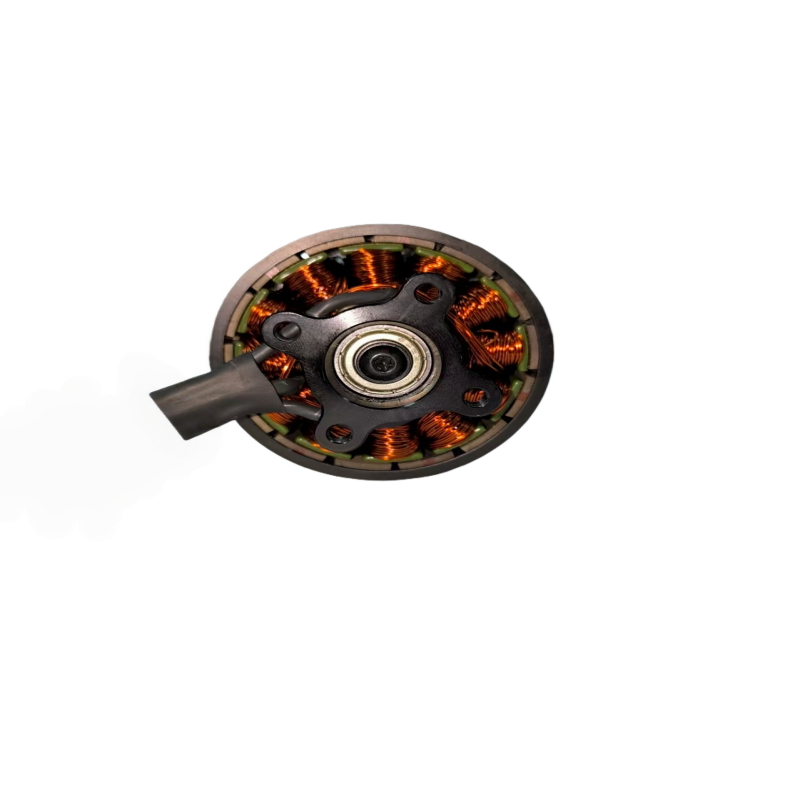

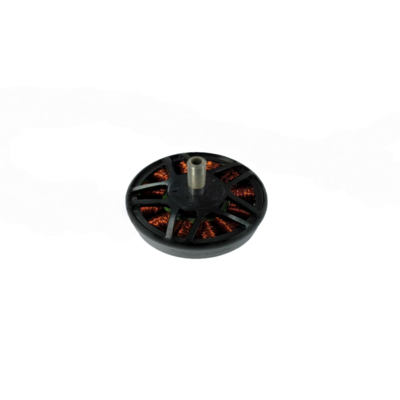

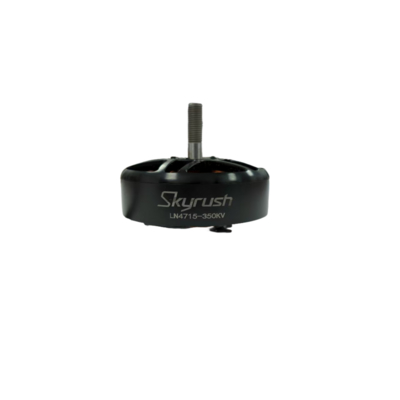

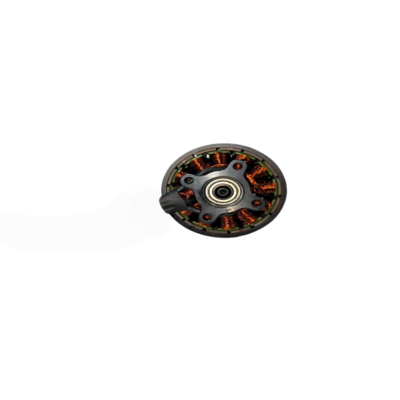

LN4715D24-001 350KV

الاسم التجاري: Retek
رقم الطراز: أدوات الصلب
الـ MOQ: 1000pcs
السعر: negotiable
وقت التسليم: 10 أيام
معلومات مفصلة
مكان المنشأ:
الصين
إصدار الشهادات:
CCC,UL
تفاصيل التغليف:
25pcs/carton
القدرة على العرض:
10000pcs/شهر
وصف المنتج



This precision-engineered DC motor serves as a reliable power core for mid-to-large drones, ideal for commercial, industrial, and professional UAV applications. It meets modern drone needs—stable flight control and long-duration missions—making it suitable for both ready-made models and custom-built UAV projects.​



  • Rated Voltage : 24VDC
  • Motor withstand voltage test: ADC 600V/3mA/1Sec;
  • No-load performance:
    8400±10% RPM/1.5A Max
  • Load performance: 5500 ± 10% RPM / 38.79A ± 10% / 1.73 N.m
  • Motor vibration: ≤ 7 m/s
  • Motor rotation direction: CCW
  • Duty: S1, S2
  • Operational Temperature: -20°C to +40°C
  • Insulation Grade: Class F
  • Bearing Type: durable brand ball bearings
  • Optional shaft material: #45 Steel, Stainless Steel, Cr40
  • Certification: CE, ETL, CAS, UL
